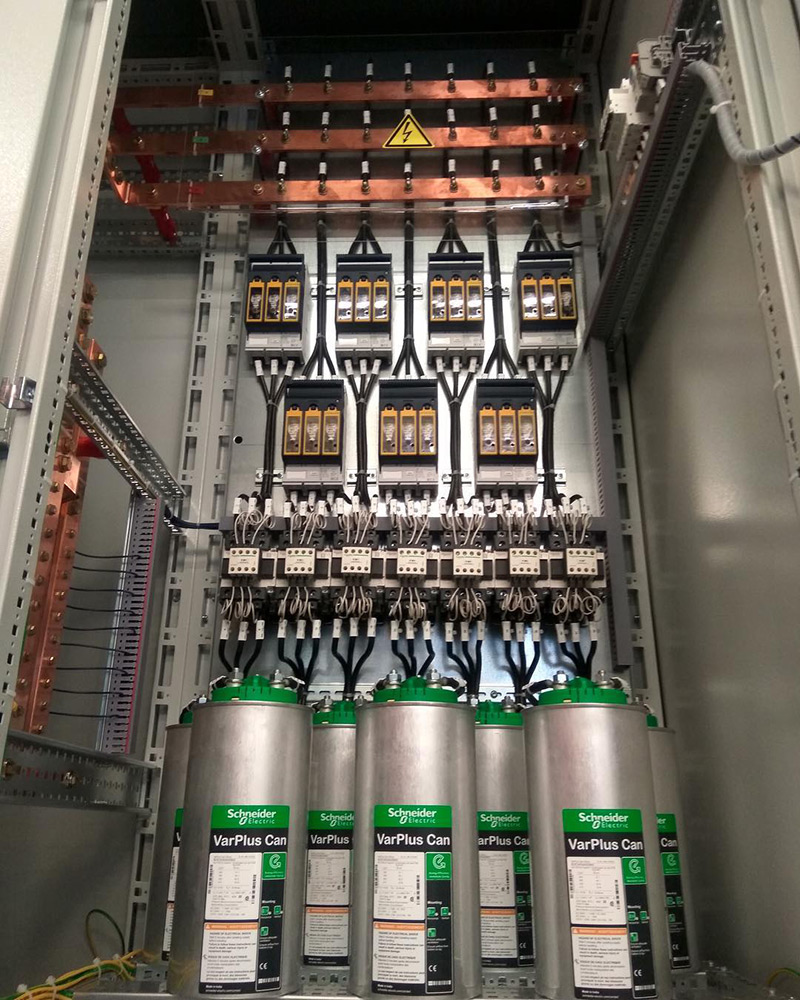

Capacitor units consist of capacitor stages connected in parallel. The stages are switched on and off automatically by the reactive power regulator.
- Supplied in three versions: with input circuit breaker, with switch disconnector, without switching device.
- Measure and display all relevant parameters: U, I, f, P, Q, S, cos(ф), THD(U), THD(I).
- Possibility of data transmission via RS485 interface (basic) or Modbus (option).
- Capacitors insulated with a special self-healing dielectric.
| Installation version | Wall Mounted / Floor Mounted |
|---|---|
| Enclosure protection degree, GOST 14254 | IP41 or higher |
| Enclosure color | RAL 7035 |
| Climatic version, GOST 15150 | UHL4, U3 |
| Operational temperature range | -25...+40 °С |
| Altitude of installation | up to 1000 m |
| Relative air humidity, at +25 °С | under 80 % |
| Cable connection | top/bottom |
| Maintenance | One side |
| Operating position | Vertical |
| Service life | 10 years |
| Enclosure technical requirements | TU 27.12.31.000-023-26286057-2019 |
Characteristics
|
Frequency
|
50 Hz |
|
Grid type
|
3-phase |
|
Power range
|
50...600 KVAR |
|
Total voltage harmonic distortion THD(U)
|
up to 2; from 2 to 3,5; from 3,5 to 5 |
|
Control
|
Automatic |
|
Number of stages
|
up to 12 |
|
Data transmission PC (option)
|
RS-485/ Modbus |
|
Rated voltage
|
0,4 Kv |
