    Частотные преобразователи HD9х | HD9x Inverters

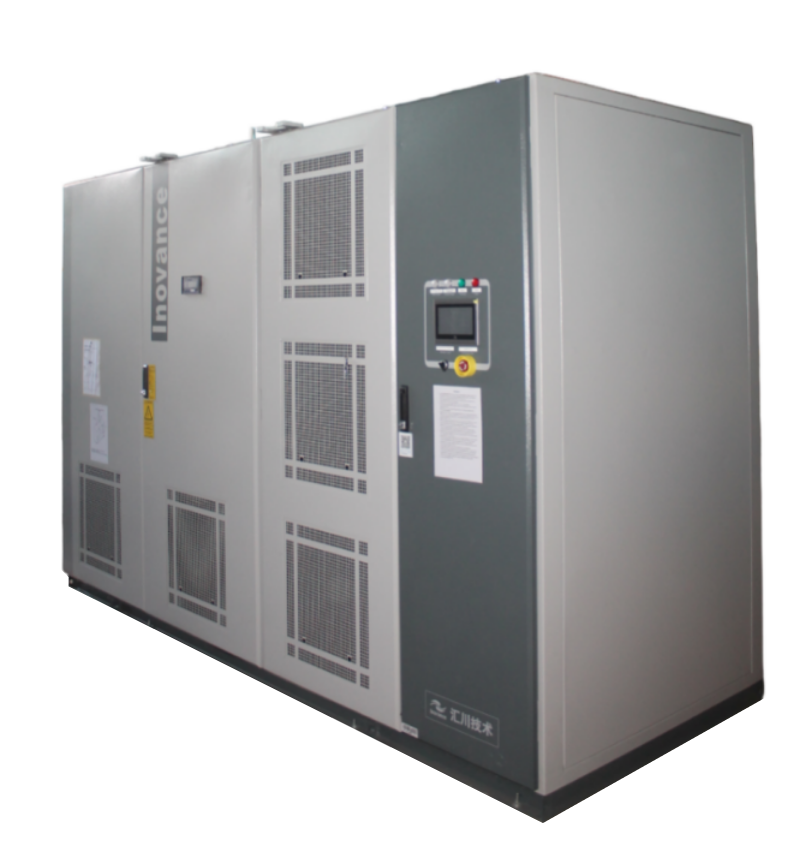

    Inovance HD9x is a modern high-performance industrial frequency inverter with vector control designed to work with asynchronous and synchronous motors up to 12.5MVA. Series connection of power cells allows to obtain a maximum output voltage of 13.8kV. HD9x has advanced control functions and high reliability. HD9x inverters meet energy saving and speed control requirements for general purpose machines such as large and medium sized fans and pumps.

    Typical applications for HD9x inverters include power generation, metallurgy, petrochemical, mining, cement, pulp and paper industries and urban infrastructure.

    • Characteristics
    • Catalogs & Documentation
    Characteristics
    Two-quadrant. Power of frequency inverter
    230-8000 kVA at 6 kV, 280-14000 kVA at 10 kV
    Four-quadrant. Power of frequency inverter
    315-4000 kVA at 6 kV, 315-5000 kVA at 10 kV
    Grid frequency range
    50/60 Hz ±10%
    Power factor
    0.95 (with load greater than 20%)
    Current harmonics
    ≤2%; in accordance with IEEE519-1992 and GBT14549-93 standards
    Output frequency range
    0 to 50/60 Hz; Max. 330 Hz; from 120 Hz requires adjustment
    Two-quadrant. Speed range
    40:1 scalar control, 100:1 sensorless vector control, 200:1 sensor vector control
    Four-quadrant. Speed range
    100:1 sensorless vector control, 200:1 sensor vector control
    Two-quadrant. Torque
    >750 rad/s
    Four-quadrant. Torque
    ±0.5 % (sensorless vector control), ±0.01 % (sensor vector control)
    Initial torque
    0.5 Hz /150 % (sensorless vector control), 0 Hz /180 % (sensor vector control)
    Type of frequency inverter
    Cascade MV frequency inverter; power cells with DC link
    Type of control
    Scalar control, vector control without sensor, vector control with sensor
    Two-quadrant. Rectifier
    Three-phase diode rectifier (full bridge)
    Four-quadrant. Rectifier
    Controlled rectifier
    Two-quadrant. Inverter
    IGBT inverter
    Four-quadrant. Inverter
    Multilevel
    Acceleration/deceleration time
    0.1 - 6500.0 s
    Control method
    Local/Remote
    Control structure
    ARM, HMI, DSP, FPGA
    HMI
    Touch screen / LCD
    Efficiency
    ≥ 97 %
    Inverter protection
    Fuses at the power cell input
    Insulation
    Fiber optic cable is used
    Input filter
    no need
    Output filter
    no need
    Reactive Power Compensation Unit
    no need
    Power cell protection
    Protection against overvoltage, undervoltage, phase loss, overheating, overload, loss of communication
    System protection
    Protection against motor overload, short-circuit, ground fault, over-voltage and over-current, mains unbalance, cooling system error alarm, inverter overheating, etc.
    Two-quadrent. Mean time between failures
    50 000 h
    Four-quadrant. Meantime between failures
    75 000 h
    Communication interfaces
    CANbus, Modbus, PROFIBUS (by order)
    Discrete inputs
    10 relay inputs
    Discrete outputs
    16 relay inputs
    Analog inputs
    х 4: 4 - 20 mA or 0 - 10 V
    Analog outputs
    х 5: 4 - 20 mA or 0 - 10 V
    Environment
    Indoor
    Temperature
    - 10 ˚С to +40 ˚С (At reduced power up to 50 ˚C)
    Humidity
    5 %- 95 %, condensate-free
    Installation altitude
    ≤ 1000 m (at reduced power ≥ 1000 м)
    Sound level
    ≤ 75 Db
    Type of cooling
    Forced-air
    Enclosure type
    GGD
    Cable connection (I/O)
    Input / output – top / bottom (specified in advance)
    Control voltage
    380 V AC, 4-wire circuit
