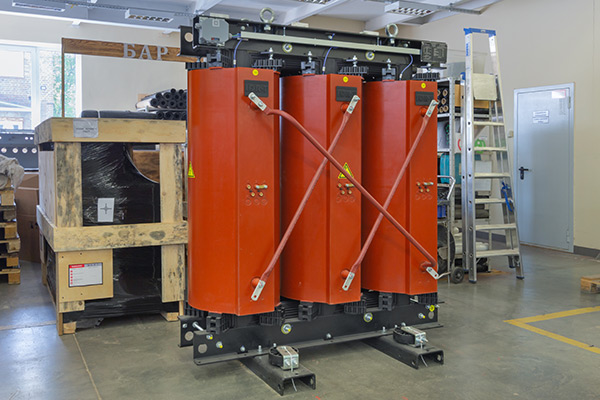

IDR-T is a three-phase dry type transformer with vacuum cast epoxy resin insulation. The resin contains additives that provide the coils with high strength and high degree of heat resistance (class F and H).

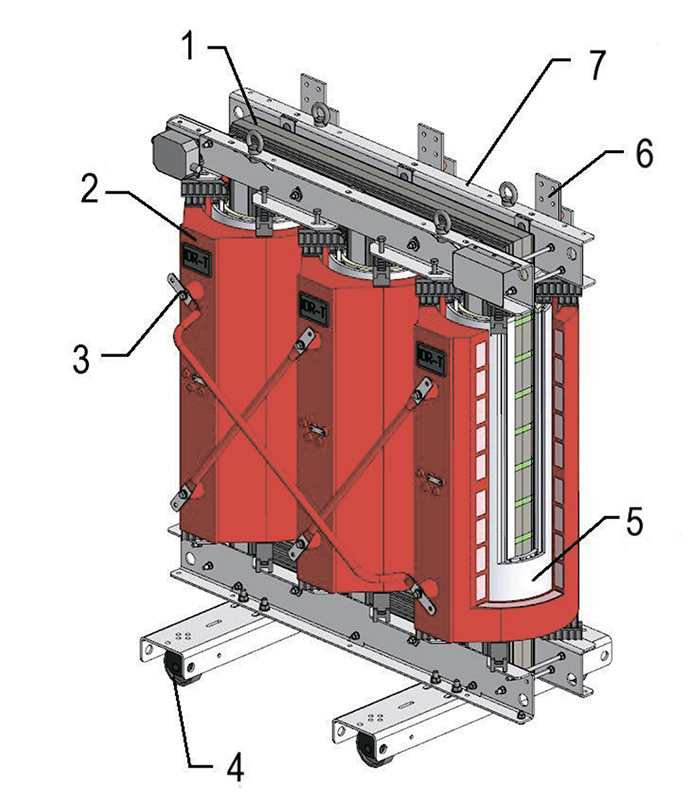

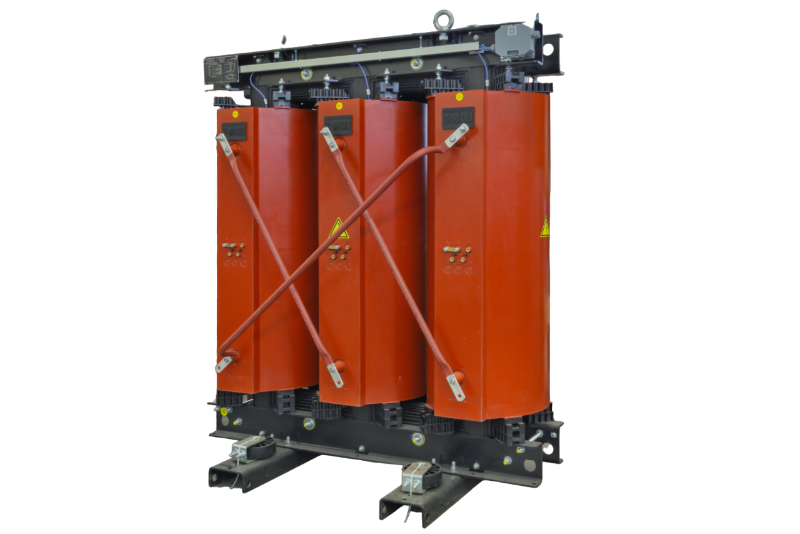

Design
- Magnetic core
- HV windings
- HV terminals
- Rotary rollers
- LV windings
- LV terminals
- Frame elements
Characteristics
|
Rated power
|
100 – 3150 kVA (other rates by request) |
|
Primary voltage
|
6 kV, 10 kV, 20 kV (other rates by request) |
|
HV insulation level
|
7,2 kV for Un=6 kV, 12 kV for Un=10 kV, 24 kV for Un=20 kV |
|
Secondary voltage
|
0,4; 0,69 kV (other rates by request) |
|
Rated frequency
|
50 Hz |
|
Short circuit voltage
|
6% (other rates by request) |
|
Vector group
|
D/yn – 11 or Y/yn-0. (other type by request) |
|
HV/LV insulation heat resistance class
|
F/F (other by request) |
|
Winding insulation type
|
Cast/Impregnated (cast/cast by request) |
|
Seismic withstand
|
6 MSK points (7, 8, 9 by request) |
|
Control range
|
± 2х2,5% |
|
Partial discharge level
|
< 10 pCl |
|
HV/LV winding material
|
Al/Al or Cu/Cu |
|
Ambient temperature
|
-45/+40°С (other range by request) |
|
Altitude of installation
|
up to 1000 m |
|
Protection degree
|
IP31 (IP54 by request) |
|
Connection terminals location
|
Bottom, side, upper (by customer specification) |
|
Cooling
|
Natural / Forced |
|
Service life
|
not less than 25 years |
|
|
