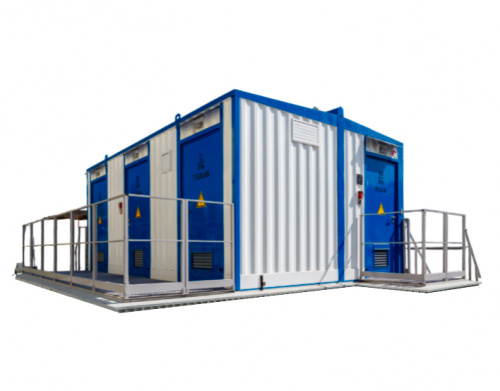

Substation ISET is a fully factory-ready transformer substation with one, two or more power transformers. Transformers can be either oil or dry, with epoxy resin insulation.
The substation is equipped with all necessary auxiliary systems: heating, natural ventilation, lighting, socket network. If necessary, the substation can have forced ventilation, air conditioning, security and fire alarm systems.
Transformer substation ISET produced by AIDI-ENGINEERING has the following specific features:
Small dimensions.
ISET transformer substation has modular architecture and is supplied by blocks. Dimensions of each block allow its delivery by any type of transport.
Energy efficiency and adaptation to harsh climatic conditions.
Heat loss reduction is achieved through the use of mineral wool insulation and the installation of thermostats on heating devices.
Customization.
The modular design of ISET transformer substation allows to have flexible layout solutions. Dimensions of each block can also change according to customer requirements.
Vandal-proof
In the solid welded version, the block-modular building is manufactured with its own load-bearing frame. The wall material in this case is profiled steel sheet.
Short installation time
ISET transformer substations are supplied full factory ready with pre-installation check and adjustment of electrical equipment at the site of manufacturer.
Seismic withstand 9 points.
Service life of ISET transformer substation is not less than 25 years.
As a standard, the power supply to the transformer substations is made by cable, with a bottom entry. Connection to an overhead power line is also possible.
ISET transformer substation provides metering of electric energy. It is possible to remotely control the switches on the LV and HV sides (option).
Supply package:
1. Substation modules with auxiliary networks
2. HV switchgear
3. LV switchgear
4. Power transformers
5. Power cable jumpers:
HV switchgear -Transformer
LV switchgear - Transformer
6. Auxiliary power supply cabinets
7. Transformer thermal protection panels (when ordering dry-type power transformers)
8. Oil receiver (when ordering oil transformers)
9. Service platforms
10. Personal protection equipment set
11. Technical documentation
Additional package:
1. Remote control system
2. Operational current system
3. Fire alert system
4. Fire alarm and primary fire extinguishing equipment
5. Air conditioning and forced ventilation systems
Characteristics
|
Power transformer capacity, kVA
|
100-3150 |
|
Rated voltage, HV side, kV
|
6,10,20 |
|
Rated voltage, LV side, kV
|
0.4, 0.69 |
|
Main busbars rated current, HV side, A
|
630, 1250 |
|
Main busbars rated current, LV side, A
|
up to 6300 |
|
Rated peak withstand current, HV side, kA
|
up to 125 |
|
Rated short-time withstand current, HV side, kA
|
21 |
|
Rated peak withstand current, LV side, kA
|
up to 300 |
|
Rated short-time withstand current, LV side, kA
|
up to 130 |
|
Service life
|
not less than 25 years |
|
Ambient temperature, °С
|
-60…+40°С |
|
Fire resistance, by GOST 30247-94
|
EI90 |
|
Class of structural fire hazard
|
С0 |
|
Hazard class of building structures
|
К0 |
|
Category by explosion and fire hazard
|
D |
|
Premises category
|
В4 |
|
Fire resistance degree
|
IV (II-III by customer request) |
|
Transformer type
|
oil/dry |
|
Seismic withstand by scale MSK-64
|
Up to 9 points |
|
Technical requirements
|
by TU 3412-001-26286057-2019 |
|
Climatic version, resistance to external environments. GOST 15150-69 and GOST 15543.1-89
|
U1 and UHL1 |
